MATERIAL FUSION

The Voyager’s design embraces the best of both worlds. The upper spring is composed of College Park’s Intelliweave composite technology. These fibers are woven by hand in a 3D pattern for ultimate flexibility and strength. The carbon fiber base spring enhances function by providing a dynamic response and increased energy return. The Voyager’s material fusion makes it responsive and reliable during a wide range of activities.

PIVOT WITH EASE

Made of titanium and stainless steel, the Voyager’s adjustable, built-in torsion unit offers a maximum of 20° of internal and external rotation. Users can twist with ease, which may improve comfort for walking or high-impact sports. This smooth movement can help reduce forces to a patient’s socket and residual limb. With simple adjustments using a 4mm hex key, the Voyager’s unique torsion feature offers additional, integrated energy return.

VERTICAL SHOCK ABSORPTION

Comfort is key. The Voyager allows for up to 10mm of vertical shock absorption, which can reduce impact and pressure on the body. Its vertical compliance does not affect function during normal use.

Skip to the beginning of the images gallery

Explore in Comfort

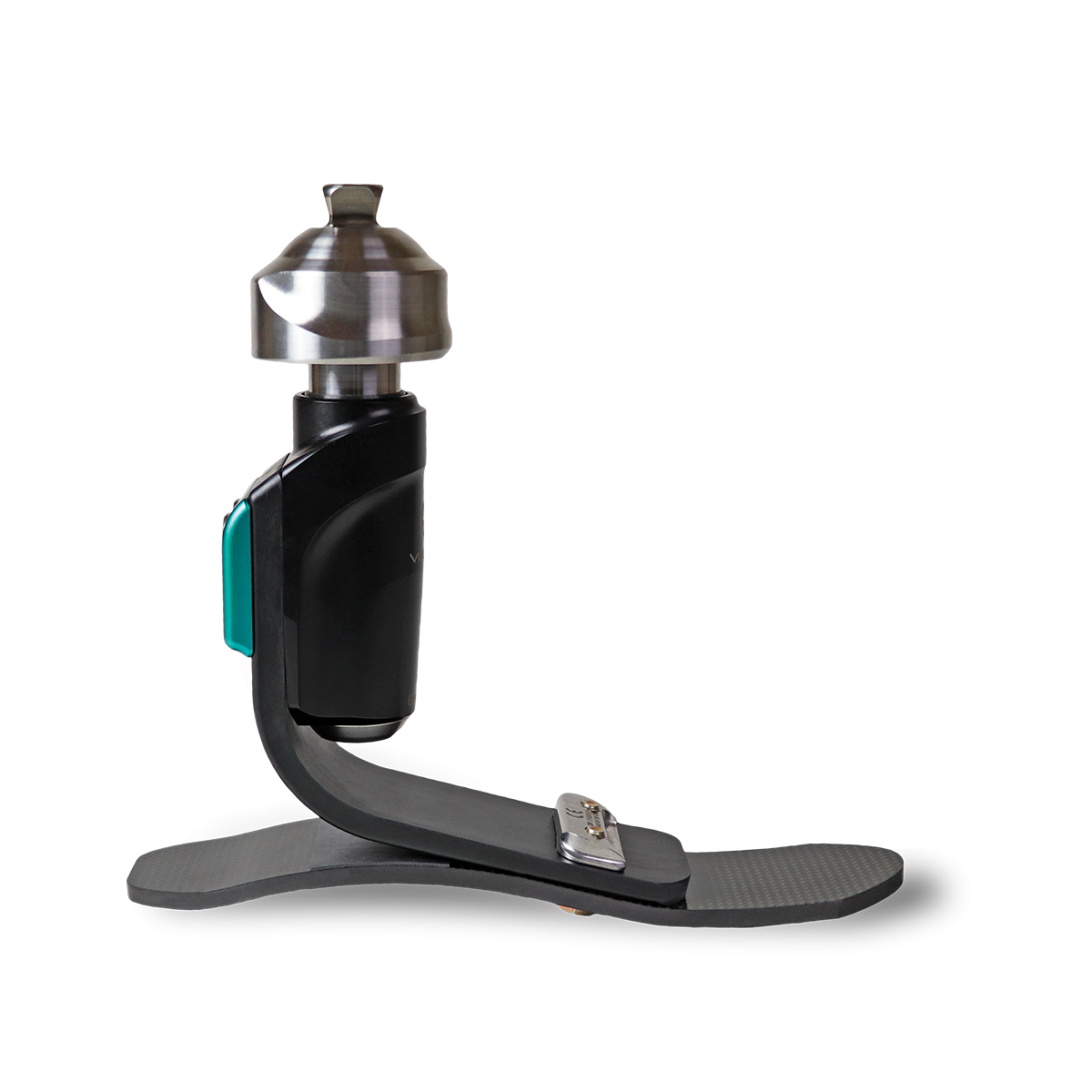

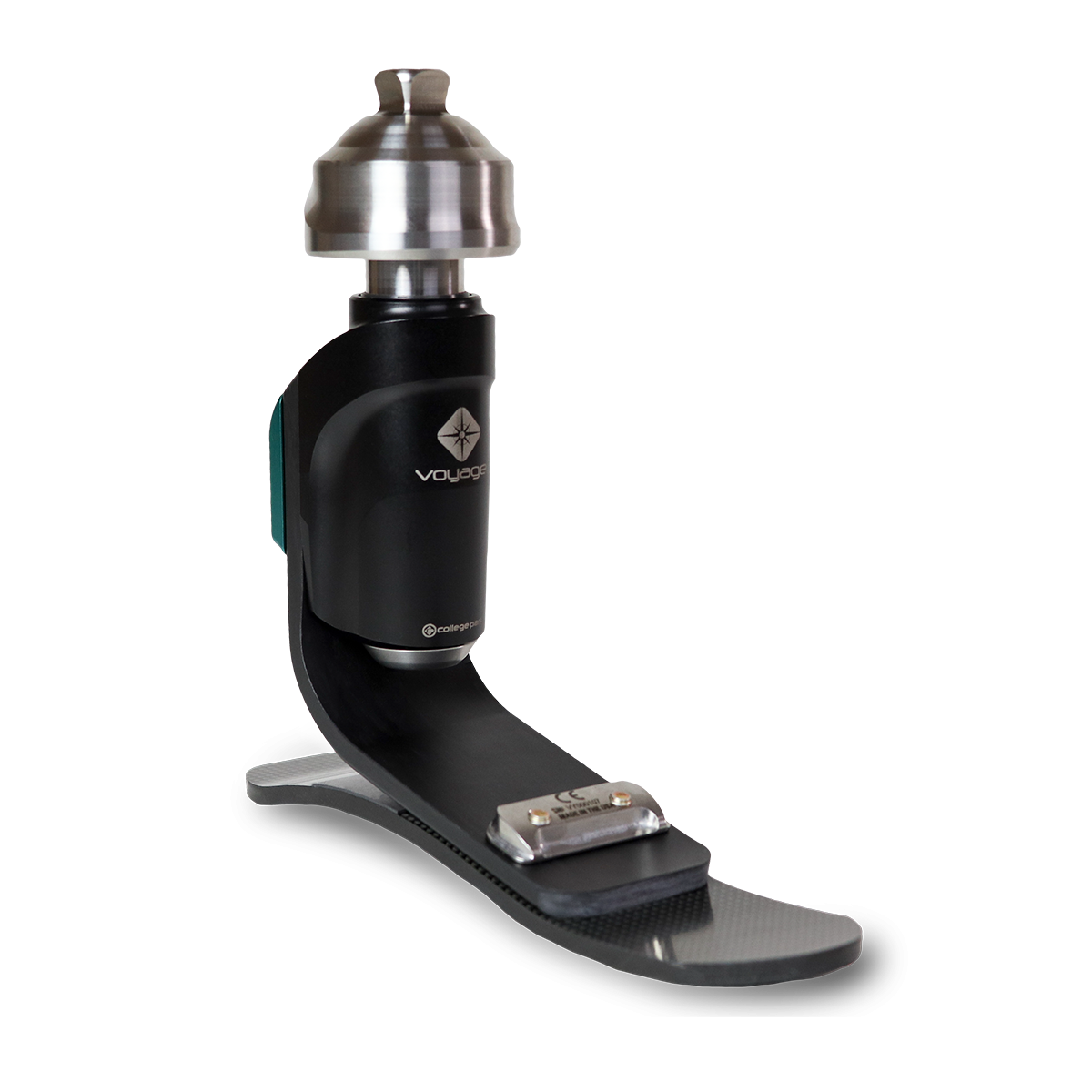

The College Park Voyager foot was designed to achieve ultimate comfort and rotation for any journey. With vertical shock absorption, responsive springs, and built-in torsion, this high-performance foot can feel more natural to the user. Its superior range of motion accommodates varying activity levels. The sleek Voyager foot uses a hybrid material approach—blending flexible Intelliweave® composites with durable carbon fiber to maximize function.

*430mm standard stainless steel. Kits must be ordered directly from College Park. US and Canada only.
**Direct US/Canada orders only. This offer can be combined with existing discounts, excluding knee/foot kits.

Suggested L Codes : L5987, L5984
PDAC APPROVED

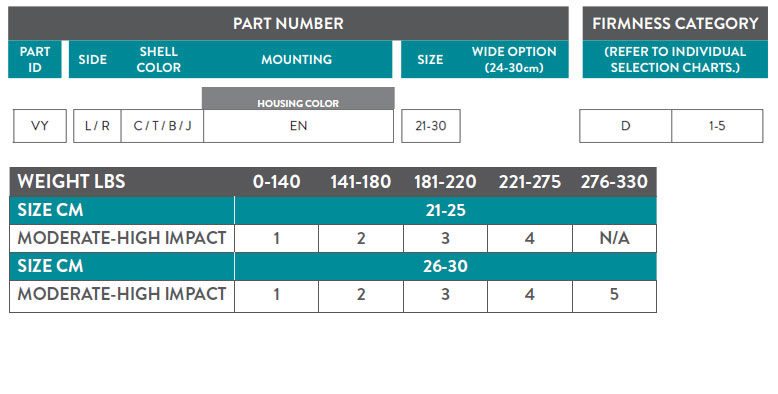

Build Part Number

Suggested L Codes : L5987, L5984
PDAC APPROVED

Choose Side

Left

Right

Left

Choose Color

Choose Size

Part Number

Copied to clipboard

Right

Same as Left Side

Choose Color

Choose Size

Part Number

Copied to clipboard

Shoe Size Conversion Chart

FOOT SIZE (cm)	U.S. Shoe Sizes
FOOT SIZE (cm)	Children	Men	Women
13	5.5-6.5
14	7-7.5
15	8-8.5
16	9-9.5
17	10-11
18	11.5-12.5
19	13-13.5
20	1-1.5
21	2-2.5	2-2.5	4-4.5
22		3-4	5-5.5
23		4.5-5	6-6.5
24		5.5-7	7-8
25		7.5-8	8.5-9.5
26		8.5-9	10-10.5
27		9.5-10.5	11-11.5
28		11-11.5	12
29		12-13
30		14
31		15

Specs & Downloads

Specifications

*26cm, with Removable foot shell and CPI sock.
** The listing of codes with these products should not be construed as a guarantee for coverage or payment. Ultimate responsibility for the coding of services/products rests with the individual practitioner.

	Impact Level	Moderate-High
	Mounting	Endo
	Weight Limit (lbs)	21-25 cm \| 275 lbs (125 kg) 26-30 cm \| 330 lbs (150 kg)
	Size Range	21-30 cm
	Clearance	7.5 in (19.1 cm)
	Foot Weight*	1,174 g
	Water Capability	Waterproof in Fresh Water
	Warranty	3 years
