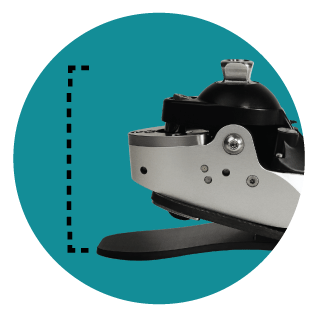

Low-Profile Design

Designed with a low build height to enhance both functionality and aesthetics, the Odyssey iQ foot can accommodate patients with longer residual limbs. The low build height also allows for a more natural look with anatomical ankle placement.

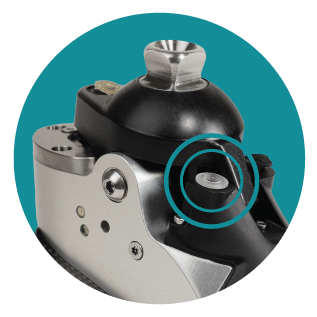

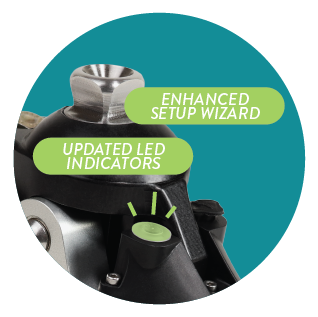

User-Friendly

The Odyssey iQ microprocessor foot was created to reduce mental and physical stress for the user. With responsive sensors, the intuitive Stride Studio app, and considerate structural design, this foot allows the user to shift their focus to better things. Clinicians may benefit from the Setup Wizard and simple calibration through Stride Studio.

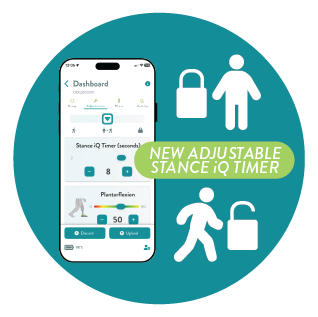

Stride Studio and Stance iQ

Clinicians can easily adjust plantar/dorsiflexion resistances and Stance iQ mode in the Stride Studio app. This unique mode provides stability when no motion is detected and returns to movement when the user takes a step. Our unique Setup Wizard will walk clinicians through the setup and simple calibration process. We capture regular walking speed, and the system can adapt for changes in speed and slopes or ramps. Patients have access to Stance iQ mode and step counter in Stride Studio.

Lightweight Comfort

The lightweight Odyssey iQ foot may reduce fatigue for users. By minimizing weight, patients can enjoy long walks and more active lifestyles with less strain.

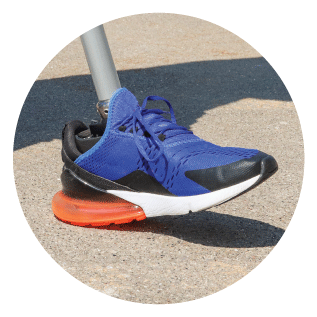

Spring-Assisted Dorsiflexion

College Park’s engineers took an innovative approach to increase toe clearance. The Odyssey iQ foot offers mechanical spring-assisted dorsiflexion through swing. With unique valving and hydraulic circuits beginning at toe-off and through swing phase, the foot will automatically dorsiflex to provide maximum toe clearance.

IP67 Rating

To accommodate everyday life, the Odyssey iQ foot is protected from dust, sand, dirt, and temporary submersion in fresh water.

Skip to the beginning of the images gallery

Work Smarter, Not Harder

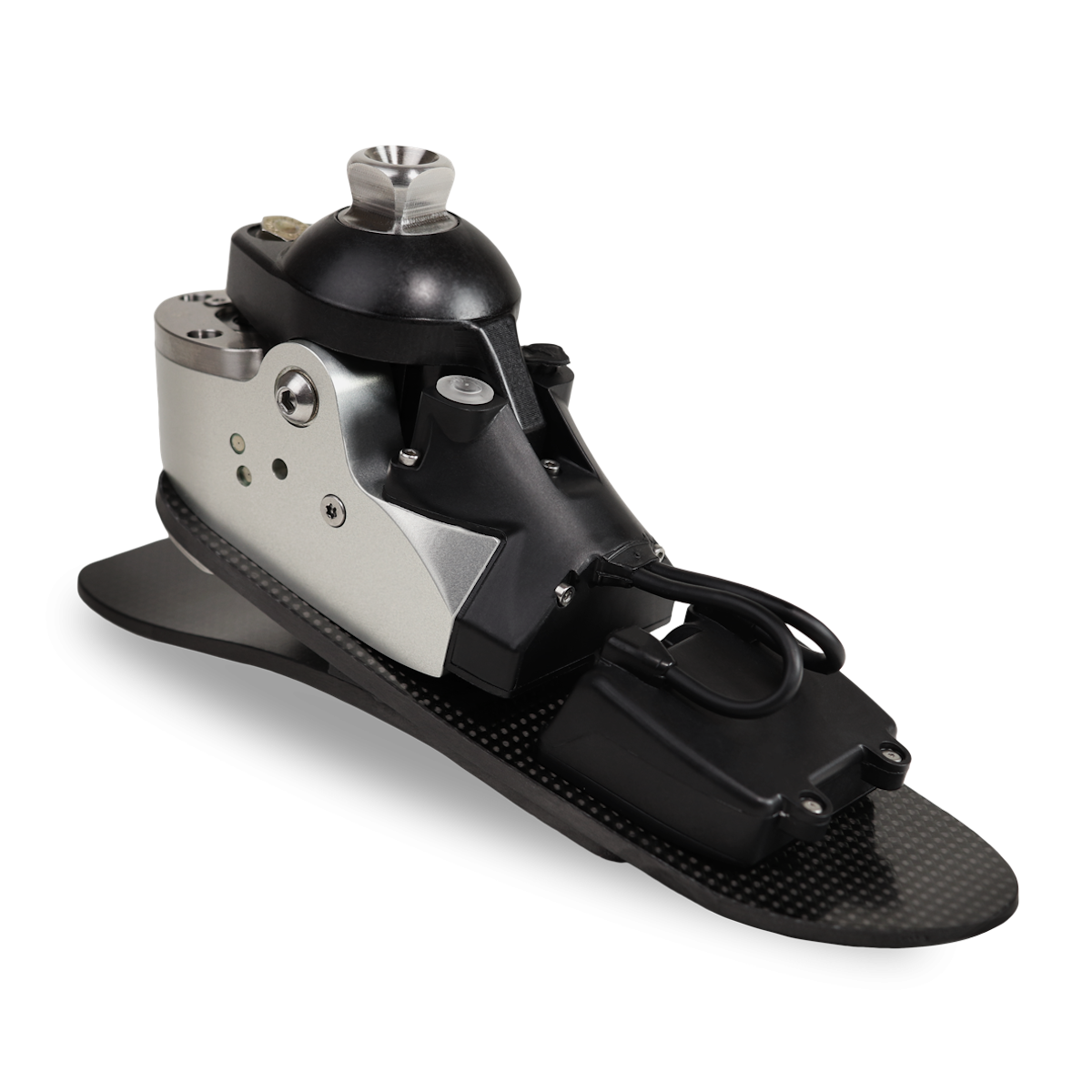

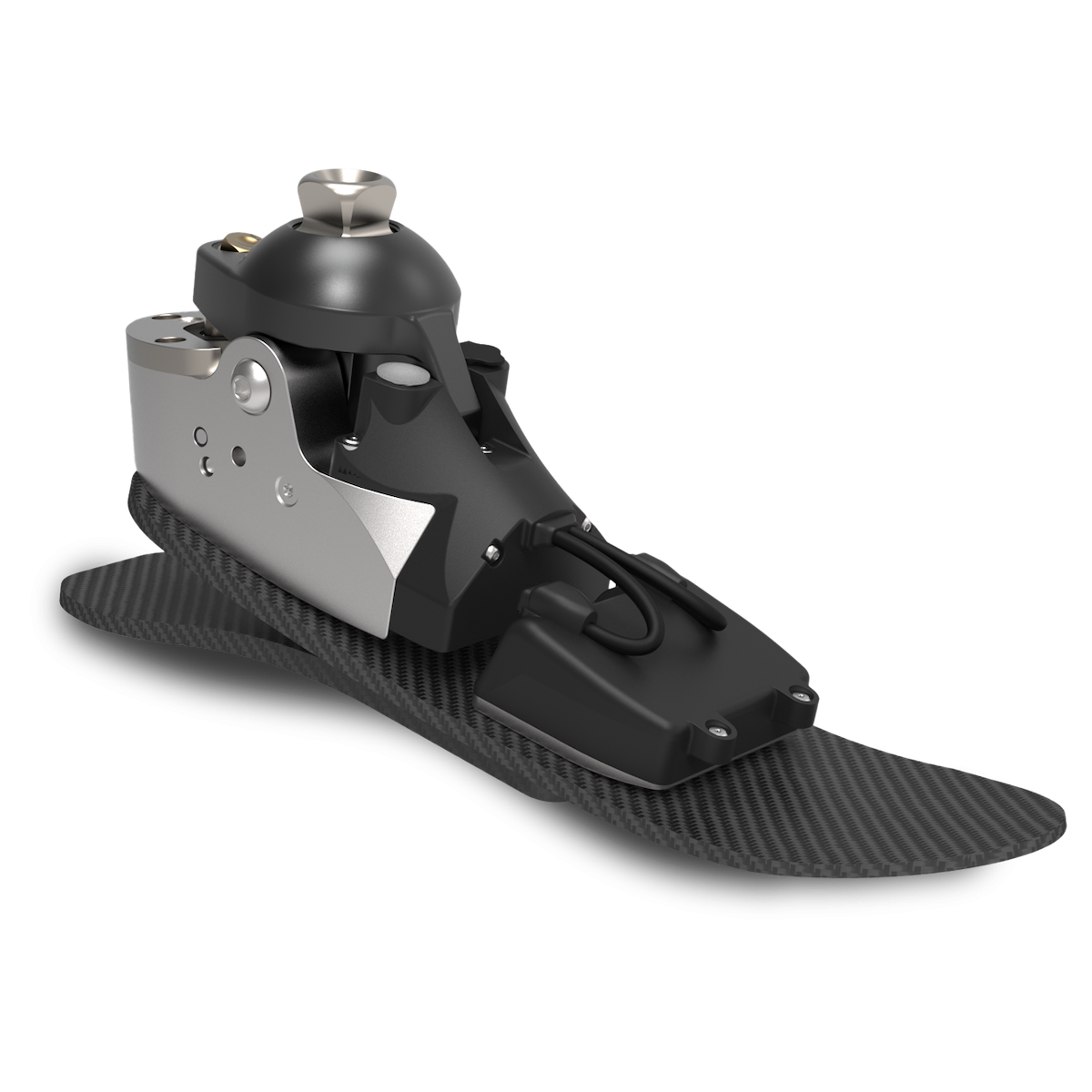

The new Odyssey^® iQ microprocessor foot is hydraulically dampened, lightweight, and incredibly low-profile. With an IP67 rating, long-lasting battery, and fast responses, it accommodates a wide range of users and activities. It also features simple setup and a unique method of spring-assisted dorsiflexion. The Odyssey iQ foot was created to be user-friendly for patients and clinicians—providing access to valuable functions in College Park’s Stride Studio app.

*430mm standard stainless steel. Kits must be ordered directly from College Park. US and Canada only.
**Direct US/Canada orders only. This offer can be combined with existing discounts, excluding knee/foot kits.

Suggested L Codes : L5973
PDAC APPROVED

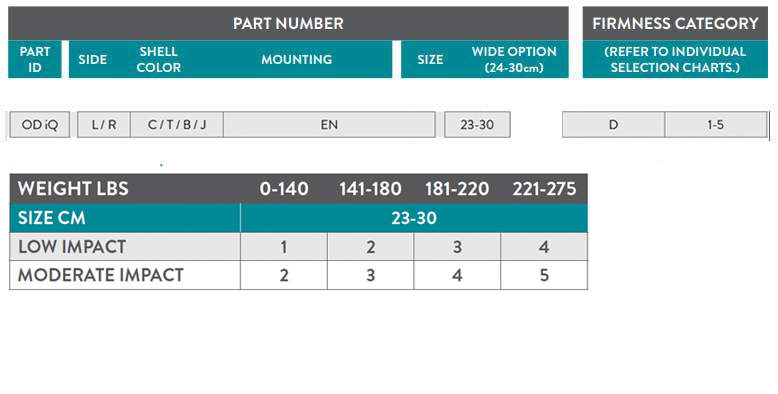

Build Part Number

Suggested L Codes : L5973
PDAC APPROVED

Choose Side

Left

Right

Left

Choose Color

Impact Level

Choose Weight/Category

Choose a Size

Part Number

Copied to clipboard

Right

Same as Left Side

Choose Color

Impact Level

Choose Weight/Category

Choose Size

Part Number

Copied to clipboard

Shoe Size Conversion Chart

FOOT SIZE (cm)	U.S. Shoe Sizes
FOOT SIZE (cm)	Children	Men	Women
13	5.5-6.5
14	7-7.5
15	8-8.5
16	9-9.5
17	10-11
18	11.5-12.5
19	13-13.5
20	1-1.5
21	2-2.5	2-2.5	4-4.5
22		3-4	5-5.5
23		4.5-5	6-6.5
24		5.5-7	7-8
25		7.5-8	8.5-9.5
26		8.5-9	10-10.5
27		9.5-10.5	11-11.5
28		11-11.5	12
29		12-13
30		14
31		15

Specs & Downloads

Specifications

*26cm, with Removable foot shell and CPI sock.
** The listing of codes with these products should not be construed as a guarantee for coverage or payment. Ultimate responsibility for the coding of services/products rests with the individual practitioner.

	Mounting	Endo IP
	Impact Level	Low - Medium
	Weight*	1,027 g
	Size Range	23-30 cm
	Hydraulic Range of Motion	2.5° - 9.5°
	Weight Limit	275 lb (125 kg)
	Build Height	23-25 cm \| 3.5 in (8.8 cm) 26-30 cm \| 3.6 in (9.0 cm)
	IP Rating	IP67
	Battery Life	All Day
	Warranty	3 years (3 year extended available)
