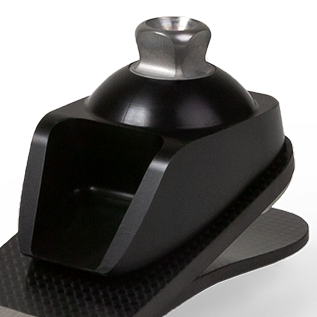

ALUMINUM EFFICIENCY

The Horizon HD is built with lightweight, aircraft-grade aluminum alloy housing. This foot handles maximum impact for users up to 365 pounds.

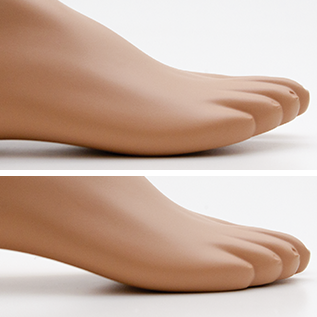

SMOOTH GAIT ENVIROSHELL®

College Park’s Enviroshell® line feature beautiful seamless shells with anti-microbial properties. The Horizon HD shell’s toes were specially designed to assist with rollover for the smoothest possible gait.

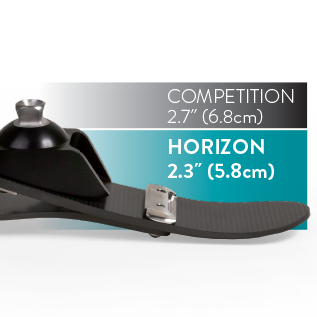

ULTRA-LOW PROFILE

With a clearance of 2.3" (5.8cm), the Horizon HD is one of the lowest profile, high-impact K3 carbon feet on the planet.

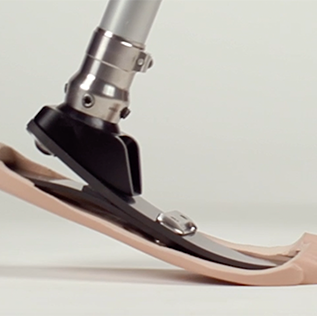

IMPROVED ROLLOVER

This new and improved design enhances rollover for a smoother gait. The heel spring and curved toe spring were meticulously crafted using stress predictions to increase strength and prevent failure. The design allows the carbon fiber laminate to be pushed to the limit, providing greater flexibility and increased ground compliance.

Skip to the beginning of the images gallery

Smooth Rollover

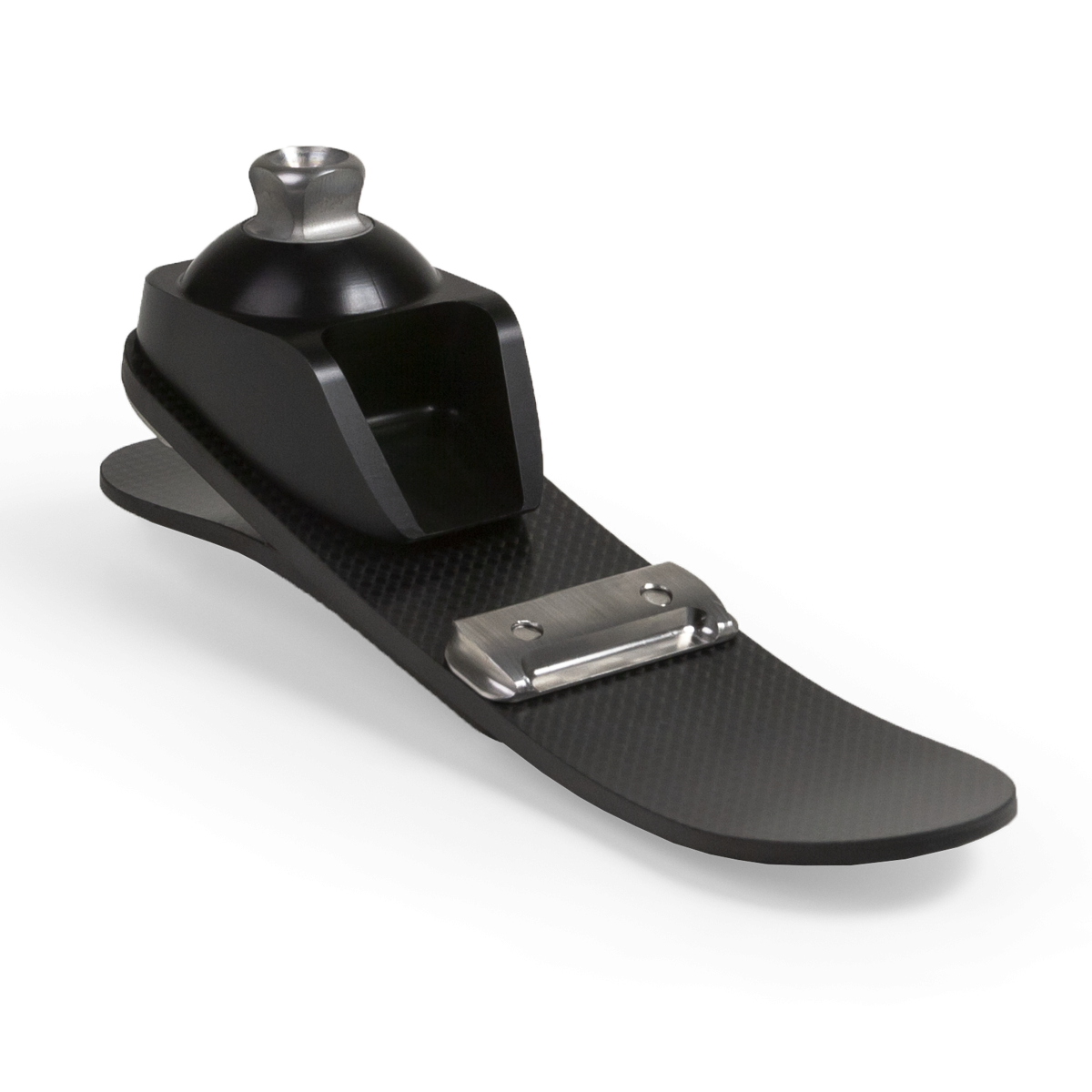

The updated and improved Horizon HD brings College Park’s composite expertise to a carbon fiber laminate design. Constructed with aircraft-grade materials, this foot allows for a high weight limit and increased durability. Even with a low-profile and lightweight design, the dynamics of the foot provide superior energy return for high-impact users.

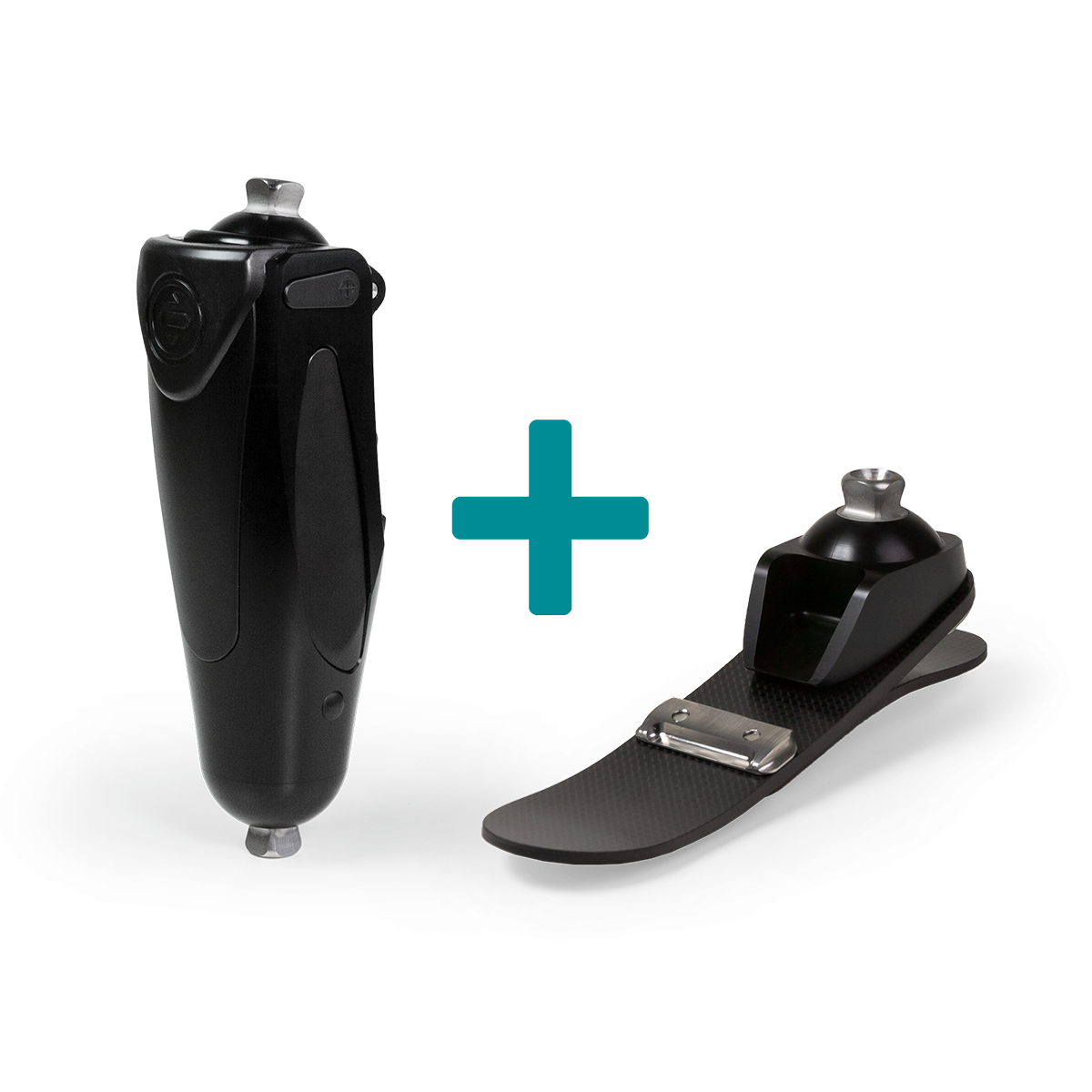

*430mm stainless steel. Kits must be ordered directly from College Park. US and Canada only.
**Direct US/Canada orders only. This offer can be combined with existing discounts, excluding knee/foot kits.

Suggested L Codes : L5981
PDAC APPROVED

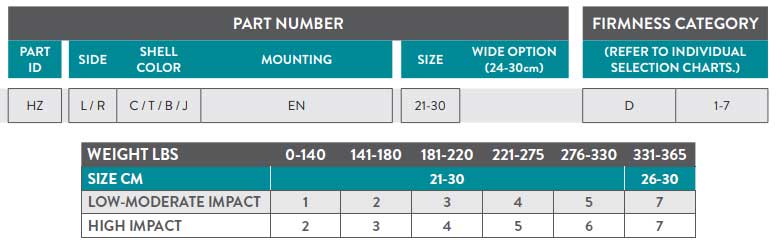

Build Part Number

Suggested L Codes : L5981
PDAC APPROVED

Choose Side

Left

Right

Choose Impact Level

Low - Moderate

High

Choose Weight/Category

Left

Choose Color

Choose Size

Part Number

Copied to clipboard

Right

Same as Left Side

Choose Color

Choose Size

Part Number

Copied to clipboard

Shoe Size Conversion Chart

FOOT SIZE (cm)	U.S. Shoe Sizes
FOOT SIZE (cm)	Children	Men	Women
13	5.5-6.5
14	7-7.5
15	8-8.5
16	9-9.5
17	10-11
18	11.5-12.5
19	13-13.5
20	1-1.5
21	2-2.5	2-2.5	4-4.5
22		3-4	5-5.5
23		4.5-5	6-6.5
24		5.5-7	7-8
25		7.5-8	8.5-9.5
26		8.5-9	10-10.5
27		9.5-10.5	11-11.5
28		11-11.5	12
29		12-13
30		14
31		15

Specs & Downloads

Specifications

*26cm, with Removable foot shell and CPI sock.
** The listing of codes with these products should not be construed as a guarantee for coverage or payment. Ultimate responsibility for the coding of services/products rests with the individual practitioner.

	Impact Level	Low to High
	Mounting	Endo (IP)
	Weight Limit (lbs)	330 (21-25 cm)365 (26-30 cm)
	Size Range	21-30 cm
	Clearance	2.3
	Foot Weight*	559 g
	Water Capability	Waterproof in Fresh Water
	Warranty	3 years
