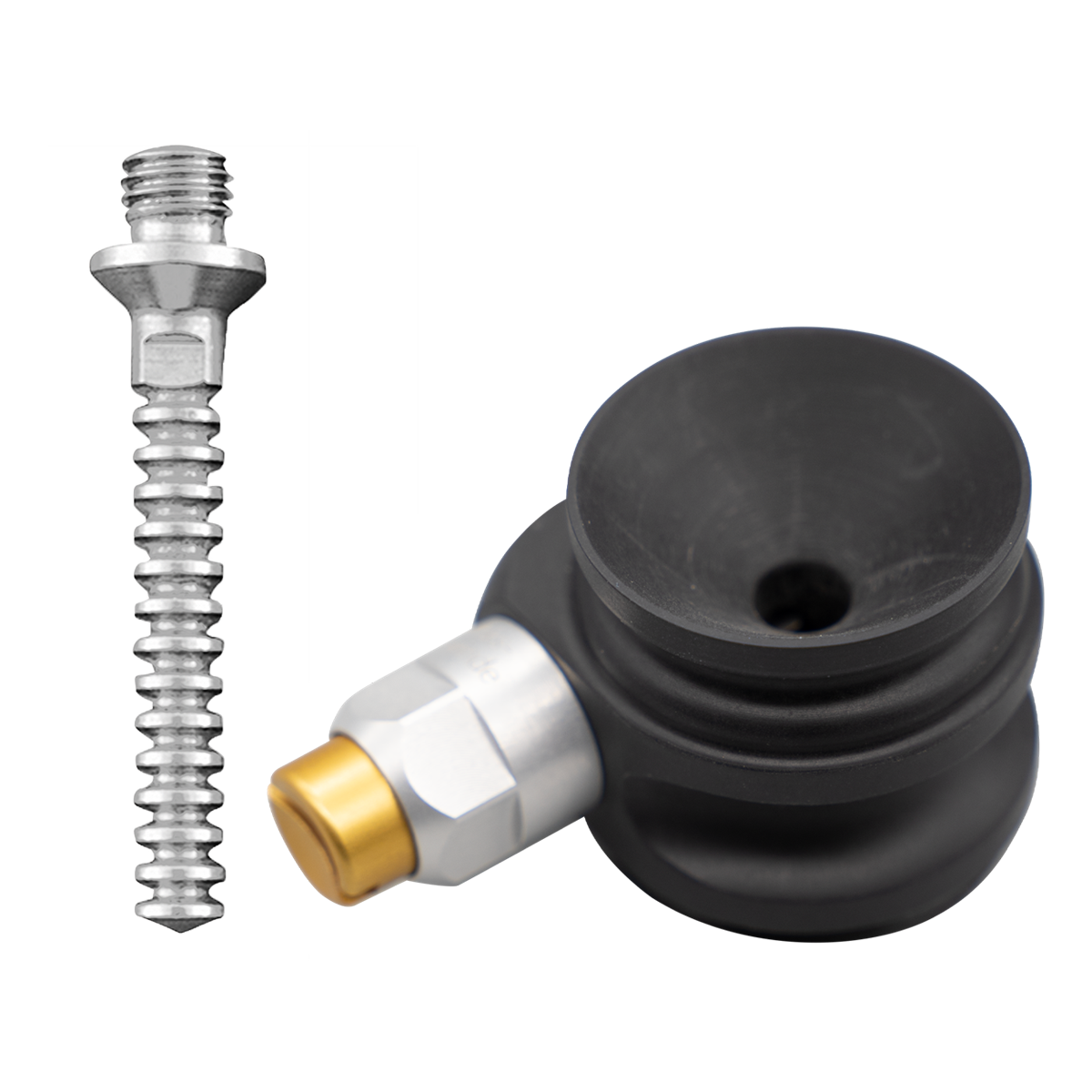

Clutch-Lock 30S1

With a focus on movement, versatility, and comfort, locks form the crucial connection between the liner and the prosthesis. They lock the liner securely in the socket and enable use without a knee sleeve. Streifeneder locks are manufactured with high precision and offer a wide range of housing variants. Different locking units give patients necessary feedback and reassurance during everyday activities.

• Max. body weight: 220 lb (100 kg)
• Activity level: 1 to 4 for 30S1
• Build height: 30 mm
• 33 mm with hopper
• Suitable for deep-drawn and laminated sockets
• Plastic housing is temperature resistant up to 200 °C
• Clutch-Lock with "EasyClick" system: optimized pull-in and release mechanism
• Lightweight, weight-optimized construction made of fiber reinforced plastic
• Locking unit completely exchangeable
• Easy cleaning and replacing of complete locking unit is possible without dismantling the prosthesis

Accessories

• For lamination in combination with: Lamination disc, round -Aluminum- 16A3 / Lamination Disc, square -Aluminum- 16A5 / Socket Adapter with adjustment core and lamination anchor -Titanium- 16A10
• To be exchanged with lamination dummies 30S1/...
• Please order press button extensions for geriatric patients or large sockets separately

Includes matching lamination dummy set 30S1/E6L
