3-Prong Anchor, Rotatable

3-Prong Anchor, Rotatable

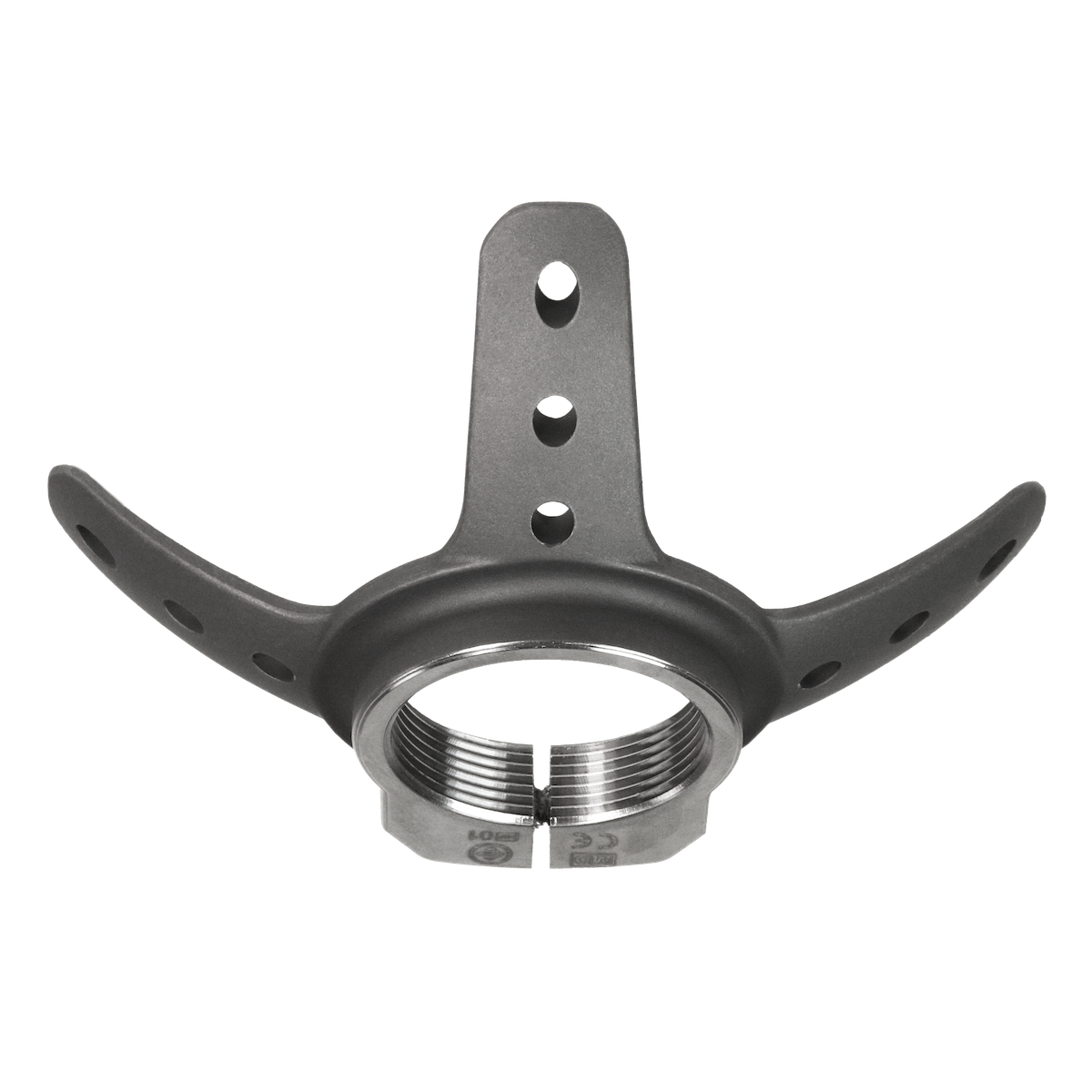

The 3-Prong Rotatable Lamination Anchor is cast from high strength stainless steel and is used with College Park's threaded adapters and receivers. The malleable arms extend through the socket for a secure structural support, with perforated holes to ensure resin saturation and optional reinforcement with carbon fiber or glass yard. The versatile design is easy to use with both thermoplastic and laminated sockets, and a one or two stage lamination process. Kit includes: 3-Prong Rotatable Lamination Anchor and Lamination Plug.
Part Number: 3PA R

Specifications

Build Height Build Height 8 mm (0.31 in)
Assembly Weight Assembly Weight 124 kg
Patient Weight Limit Patient Weight Limit 166 kg (365 lbs)
Water Capability Water Capability Waterproof
Torque (Clamp Screw) Torque (Clamp Screw) 10 N·m (7.4 ft-lbs)
Warranty Warranty 3 years, limited

Downloads
